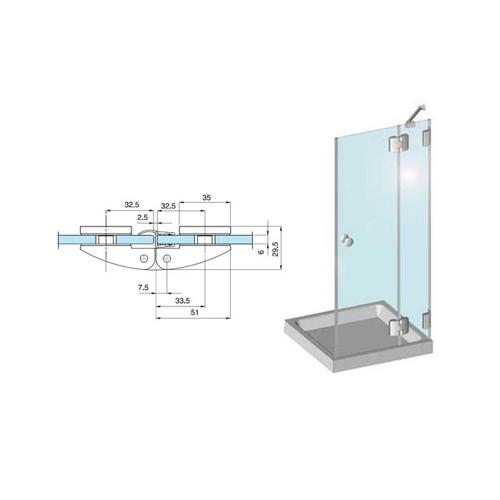

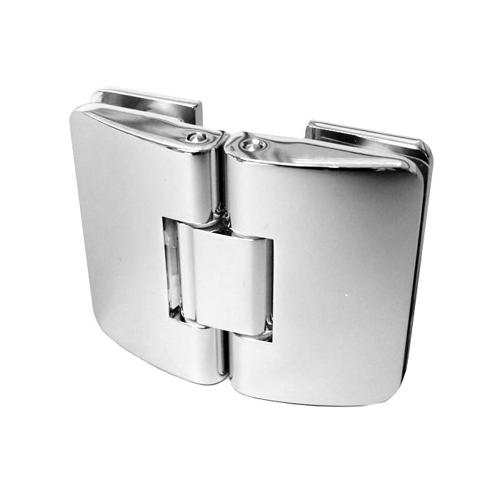

Precision-engineered in polished chrome, the Colcom 8565 is suited for frameless shower doors and glass partitions with the following technical requirements and limits:

Designed for glass thickness of 6 mm to 10 mm

Requires 14 mm diameter holes in the glass for hinge mounting

Glass-to-glass gap (space between adjoining glass panels) should be 2.5 mm

Mounting style: 180° glass-to-glass connection (door swings outward)

Maximum door width:
Using 2 hinges: up to 700 mm
Using 3 hinges: up to 800 mm

Maximum door weight:
2 hinges: ~ 35 kg
3 hinges: ~ 50 kg

Finish: polished chrome, providing both corrosion resistance and aesthetic appeal (reflective, mirror-like)

Application: suited for frameless shower enclosures, especially where a glass-to-glass joint is desired in a 180° configuration
