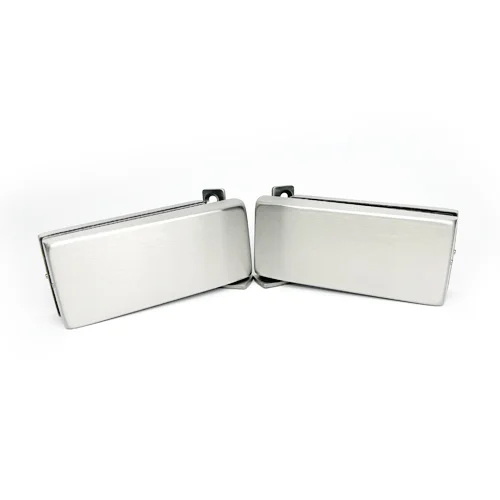

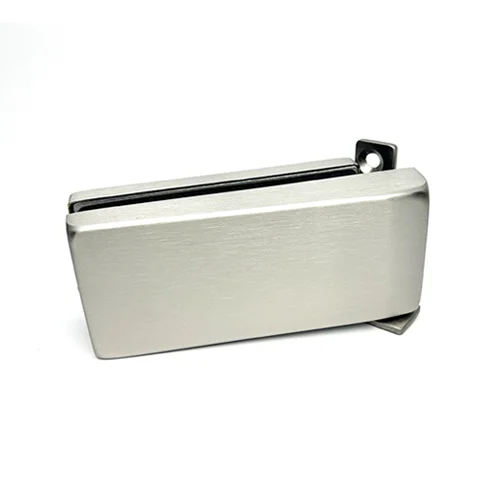

The Casma 12792 Internal Door Pivot Patch is designed for internal frameless glass doors, providing a secure top and bottom pivot mechanism.

• Mounting: Floor and ceiling mounted pivot system
• Glass Thickness: Compatible with 8–10 mm glass
• Drilling: Requires 2 × Ø18 mm holes for installation

Dimensions:

• Patch length: 117mm
• Patch height: 38mm
• Offset mounting plate thickness: 6–12mm

Additional Specs:

• Top pivot diameter: Ø6.55mm
• Bottom pivot diameter: Ø16.5mm

Adjustable positioning for alignment

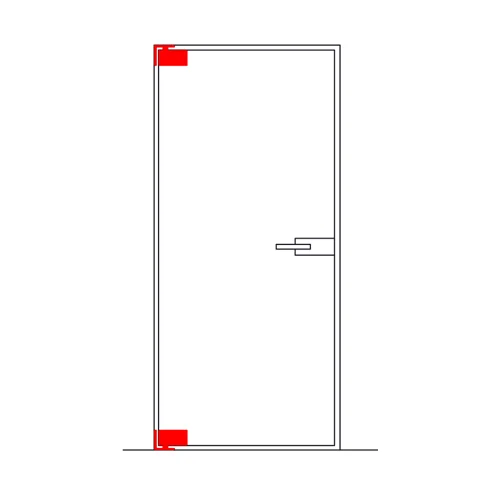

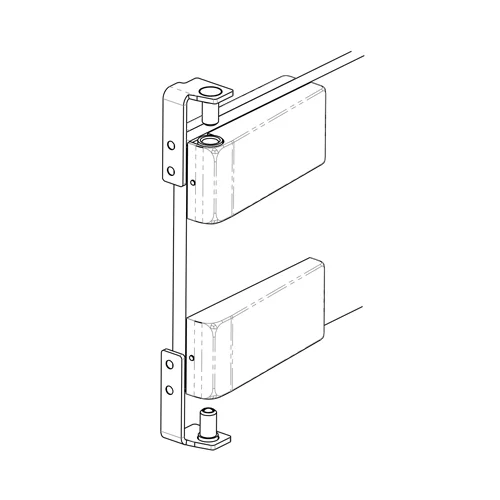

Configuration: Supports a frameless pivot door setup with concealed top and bottom fixing points
